BRISTELL RG

RG for long cross-country flights

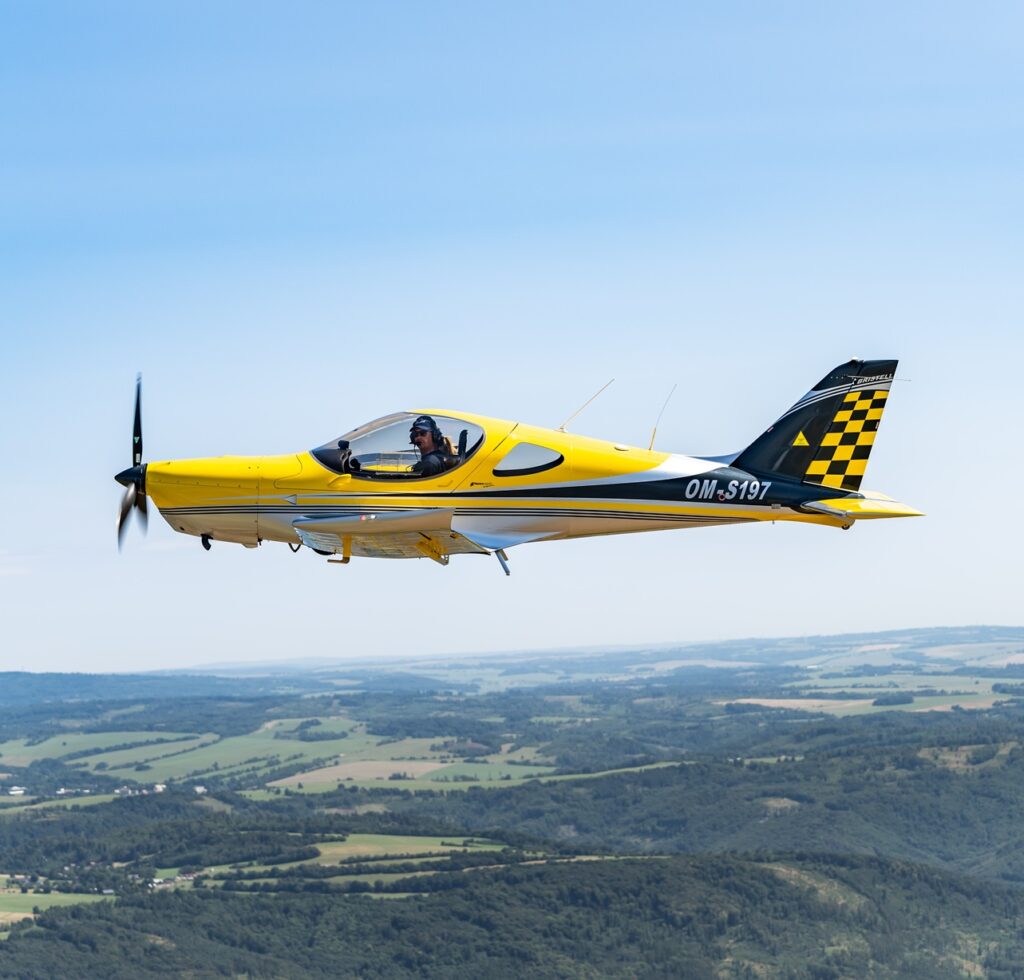

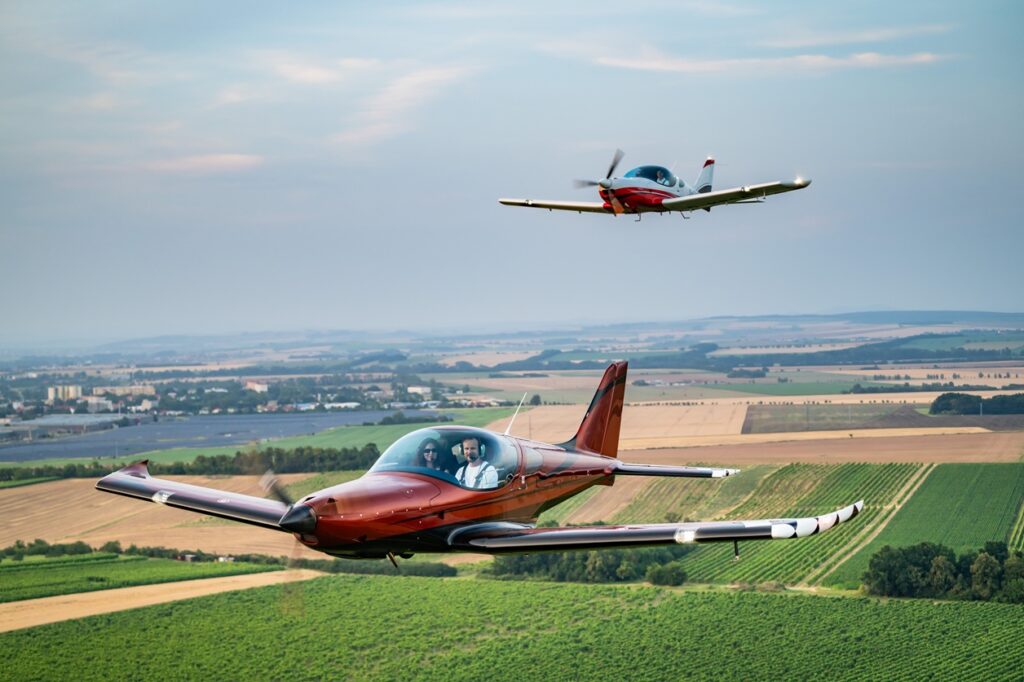

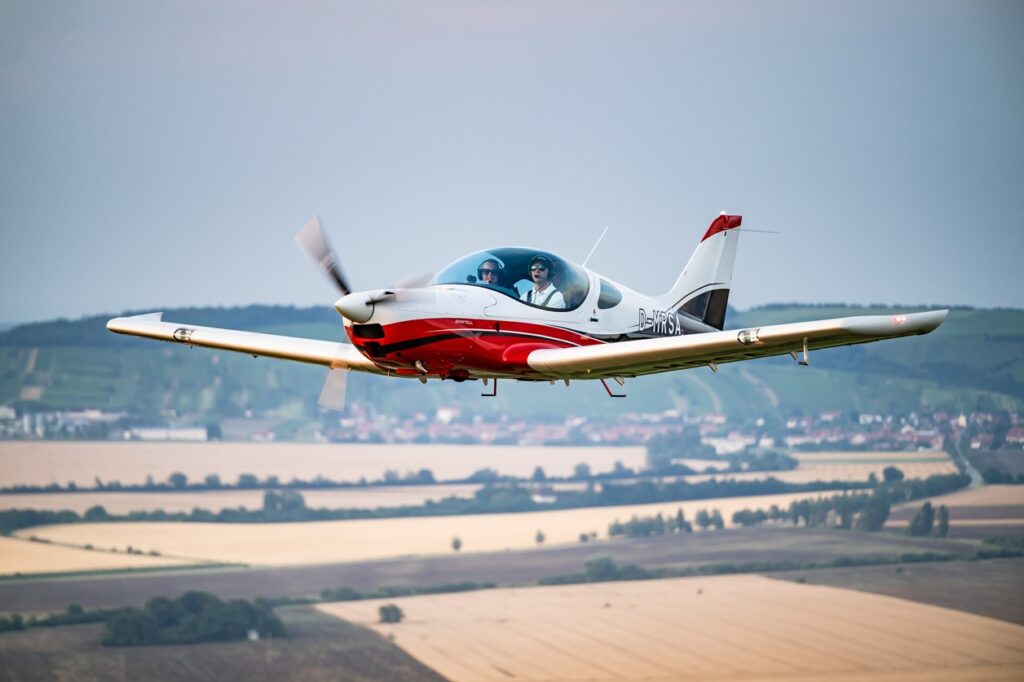

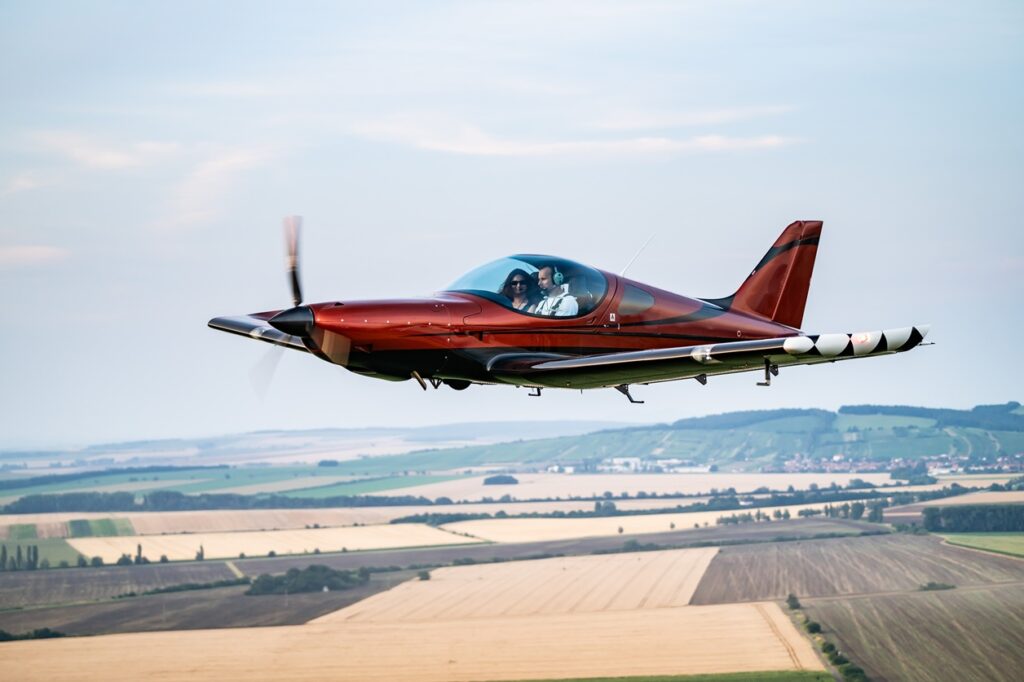

The BRISTELL RG version has a retractable undercarriage which makes it an ideal airplane for more advanced training and economical cross-country flights. Thanks to the combination of good ergonomic design and the largest cockpit in its category, this airplane is also an ideal option for long cross-country flights.

In standard configuration, the BRISTELL RG is equipped with heavy-duty wing spars, making cross-country flights much safer in extreme weather conditions.

BRISTELL DESIGN

Give your plane a personality. Choose the design you will love.

BRISTELL RG TECHNICAL DATA

Dimensions

Wing span

9.13 m

Wing area

11.75 m2

Wing loading

51.06 kg/m2

Aircraft length

6.45 m

Aircraft height

2.28 m

Cabin width

1.3 m

Weight

Empty weight

335 kg

Maximum take-off weight (MTOW)

600 kg

Useful load

265 kg

Fuel tanks capacity

120 l

Fuselage luggage compartment

15 kg

Wing luggage compartment

2 x 20 kg

Load factor

+4/-2g

Operational speed

Stall speed without flaps VS1

74 km/h

Stall speed with flaps VS0

58 km/h

Manoeuvring speed VA

180 km/h

Maximum flap speed VF

139 km/h

Maximum horizontal flight speed VH

250 km/h

Never exceeded speed VNE

290 km/h

Power unit

ROTAX 912 ULS

100 Hp

ROTAX 912 iS sport

100 Hp

ROTAX 915 iS

141 Hp
