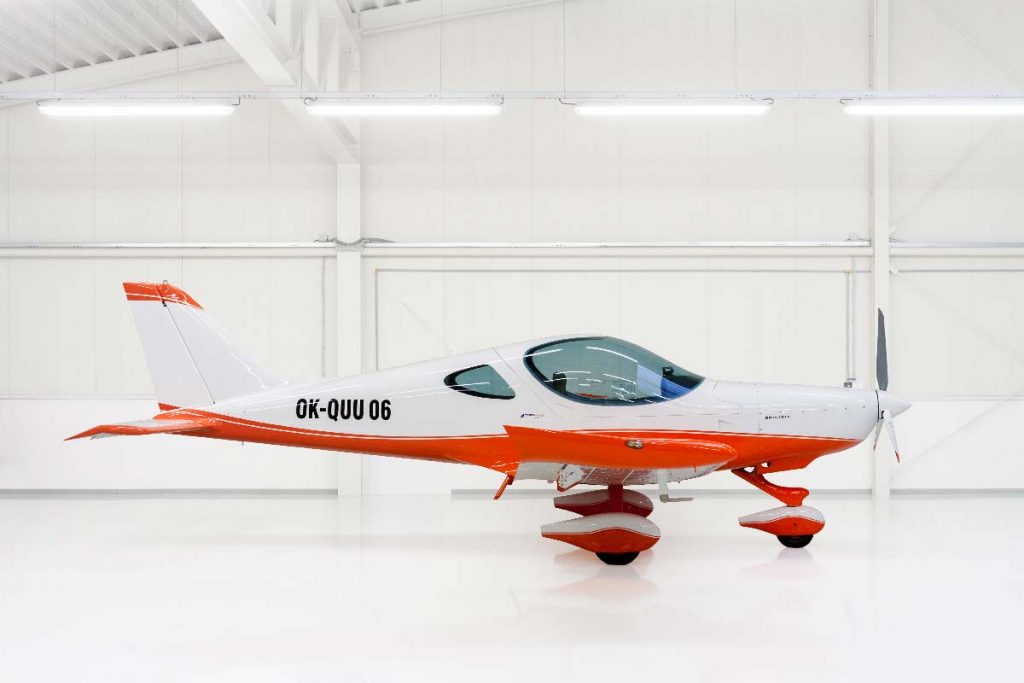

BRISTELL Classic

The ultra-light BRISTELL UL and its LSA modification in the three-wheel fixed undercarriage configuration is a great choice for training at flight schools, glider towing and recreational flying.

Thanks to the combined comfort of good ergonomic design and the largest cockpit in its category, this airplane is the ideal choice for longer cross-country flights. The BRISTELL HD version offers heavy-duty wing spars which make cross-country flights much safer in extreme weather conditions.

Easy to pilot and taxi. Low maintenance costs. Large luggage compartment. Our bestseller!

600

 kg MTOW

270

kg USEFUL load

120

litre fuel tank

BRISTELL Classic main features

Customize your plane. See what equipment and features your aircraft already has.

Rescue system FOR MORE SAFETY

BRS rescue system

Optional

For even higher safety, the BRISTELL Classic aircraft can be equipped with a rescue system from BRS, a company supplying rescue systems, for example, to Cirrus.

EASY TO FLY WITH Autopilot

BRISTELL GARMIN GMC307

Optional

Fly cross-country with even more comfort and safety. Your airplane may be equipped with autopilot.

Large luggage compartment

BRISTELL Large luggage Compartment

Optional

BRISTELL Classic can be equipped with a luggage compartment capacity of 2x20 kg in both wings and 15 kg behind the seats. In total, you can load 55kg of luggage into the aircraft.

Propeller according to your needs

BRISTELL Classic Propeller

Optional

Basically, the aircraft are equipped with a fixed propeller Fiti 158. You can replace the propeller with a hydraulically adjustable three-blade constant speed MT propeller series 34.

Steerable nose wheel FOR FULL CONTROL

BRISTELL Classic Steerable nose wheel

FEATURE

You will have the aircraft under complete control even when taxiing. BRISTELL Classic is produced only with a steerable nose wheel, helped by rudder pedals.

The most spacious cockpit in its class

BRISTELL Classic Most spacious cockpit

FEATURE

A very pleasant flying experience even for two people. Don't limit yourself, you have plenty of space. Enjoy the comfort of the most spacious cockpit on the market. It is 130cm wide.

airplane cockpit glass

BRISTELL Classic Cockpit glass color

FEATURE

Absolutely clear view from the cabin. Unequalled resistance of glass to weathering and aging. UV absorbent. We offer a blue or shade of gray glass color.

Sliding windows

BRISTELL Classic Sliding windows

Optional

Great gadget for your flights. Sliding windows for ideal ventilation.

High performance engine ROTAX 915iS

BRISTELL Classic ROTAX 915 iS

Optional

Select power and performance! Enjoy high altitude performance with ROTAX 915iS engine.

Paint schemes

Your plane will have the style you want. Elegant, dynamic. You can choose from a wide range of colors and designs. Don't limit yourself. Enjoy.

BRISTELL Classic Power

Choose the engine that best suits your flying style.

ROTAX 912 ULS / 100 HP

ROTAX 912 ULS

Best selling 4-stroke aircraft engine. 4-cylinder, 4-stroke liquid-/air-cooled engine with opposed cylinders, dry sump forced lubrication with separate oil tank, automatic adjustment by hydraulic valve tappet. 2 carburetors. Mechanical fuel pump. Dual electronic ignition. Electric starter. Propeller speed reduction unit. Air intake system.

ROTAX 912 iS Sport / 100 HP

ROTAX 912 iS Sport

Based on the proven concept of the Rotax 912 ULS this engine offers all well known advantages of the Rotax 4-stroke engine series complemented by additional features, for example, the engine management system. The complete package presents the latest technology in the aircraft engine industry and will enhance the flying and ownership experience of pilots.

ROTAX 915 iS A / 141 HP

ROTAX 915 iS

Based on the proven concept of the Rotax 912 / 914 engine series, the Rotax 915 iS engine offers more power, the best power-to-weight ratio in its class, full take-off power up to at least 15,000 feet (4,570 m) and a service ceiling of 23,000 feet (7,010 m).

BRISTELL Classic Avionics

Customize the aircraft instrumentation to your needs.

BRISTELL Classic Avionics
BRISTELL Classic Avionics
BRISTELL Classic Avionics

Comfortable Upholstery

The upholstery of BRISTELL airplane is a masterpiece. We use only materials with the best properties. Perfect workmanship. You will feel really great in your BRISTELL Classic airplane.

Go to upholstery

BRISTELL Classic TECHNICAL DATA

Dimensions


Long wing

Short wing

Wing span

9.13 m

8.13 m

Wing area

11.75 m2

10.8 m2

Wing loading

51.06 kg/m2

57.14 kg/m2

Aircraft length

6.45 m

6.45 m

Aircraft height

2.28 m

2.28 m

Cabin width

1.3 m

1.3 m

Weight


Long wing

Short wing

Empty weight

330 kg

310 kg

Maximum take-off weight

600 kg

600 kg

Useful load

270 kg

290 kg

Fuel tanks capacity

120 / 164 l

120 / 164 l

Wing luggage compartment

2 x 20 kg

2 x 20 kg

Load factor

+4/-2g

+4/-2g

Operational speed


Long wing

Short wing

Manoeuvring speed VA

180 km/h

180 km/h

Max. flap speed VFE

139 km/h

139 km/h

Max. horizontal flight speed VH

212 km/h

215 km/h

Never exceed speed VNE

270 km/h

270 km/h

The version designations may vary from country to country (the long-wing version is also referred to as the LSA, the short-wing version may be referred to as the LSA-K or HD).

BRISTELL NG5 Long wing / Short wing

COMING SOON!

BRISTELL Classic TURBO with ROTAX 915 iS engine.
