A New Standard in Efficiency and Performance.
The Rotax 912 iS Sport brings electronic fuel injection and single-lever power to the EASA CS-23 certified B23 trainer. Up to 30% lower fuel burn than carbureted engines, with BRS parachute standard. The efficiency choice for schools and cost-conscious owners.
Same durable all-metal shell, smarter powerplant. The bubble canopy gives all-round visibility, and the 130 cm (51 in) cockpit remains the widest in its class.

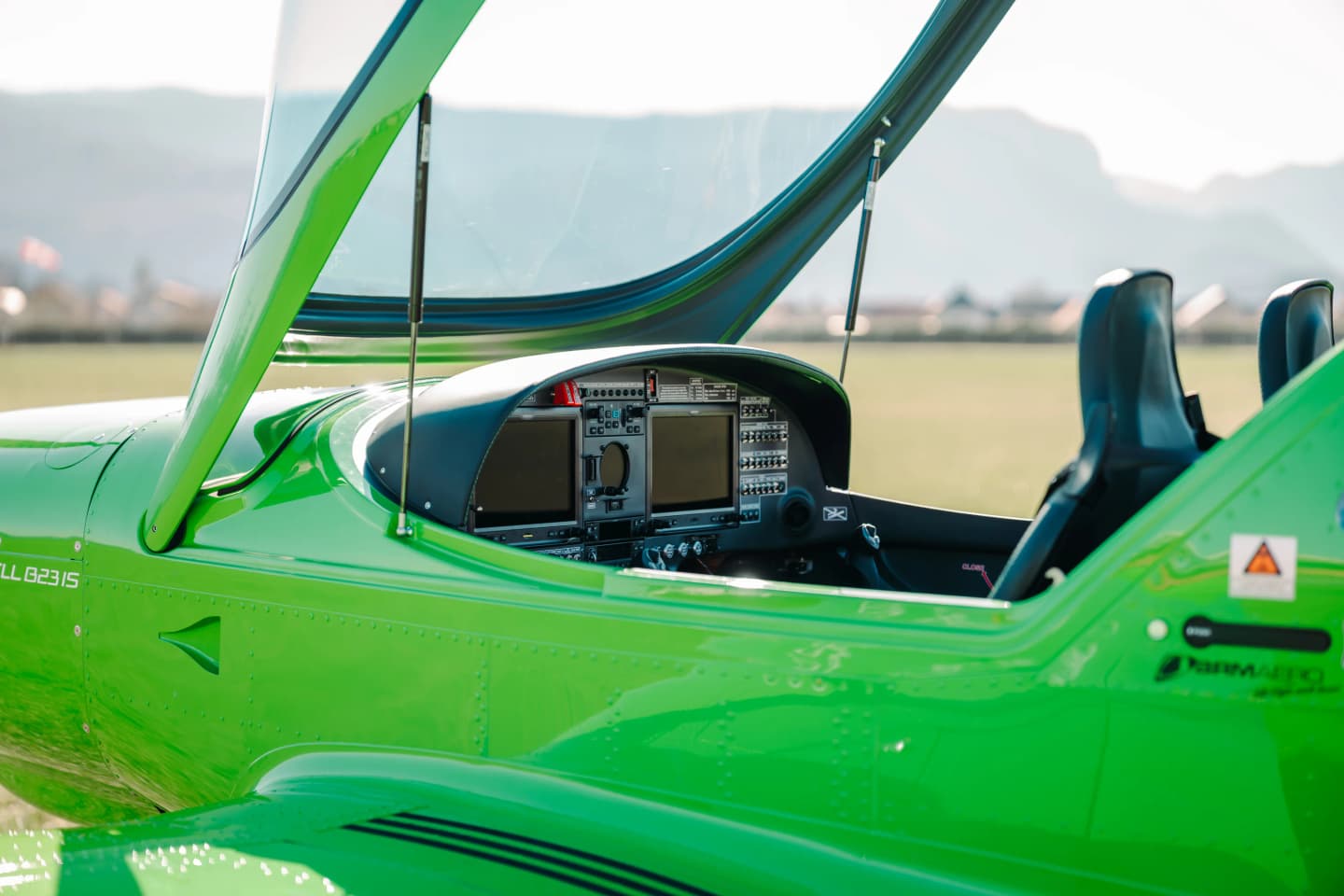

Dual Garmin G3X Touch glass, GMC 507 autopilot and ADS-B In and Out as standard, paired with Single Lever Power Control (SLPC). Fewer levers and lower workload for students and owners. Certified for Night VFR. The optional Garmin GTN 650Xi adds IFR-capable GPS navigation to the panel, but the aircraft is not IFR certified — the certified IFR platform in the B23 line is the B23-915 IFR.
Two Garmin G3X Touch glass displays showing flight instruments, moving map and full engine monitoring. Touch control with physical knobs as backup, so the pilot is not fighting a touchscreen in turbulence.
Garmin GMC 507 autopilot with a dedicated Blue LEVEL button that returns the aircraft to wings-level flight at a single push. It handles the routine legs to cut pilot workload, and the pilot stays in command for the parts that matter.
Garmin GNC 215A NAV/COM radio for communication and VOR navigation, a certified backup to GPS navigation.
Touchscreen GPS, NAV and COM navigator with LPV approach capability for instrument approaches down to near-precision minimums.
B23 is certified for Night VFR with the glass cockpit, autopilot and lighting to support it. On UL/LSA models night flying is a build-up option, not a certification.
Garmin Flight Stream 510 linking the panel to a tablet for wireless flight- plan transfer, weather and traffic with ForeFlight or Garmin Pilot.

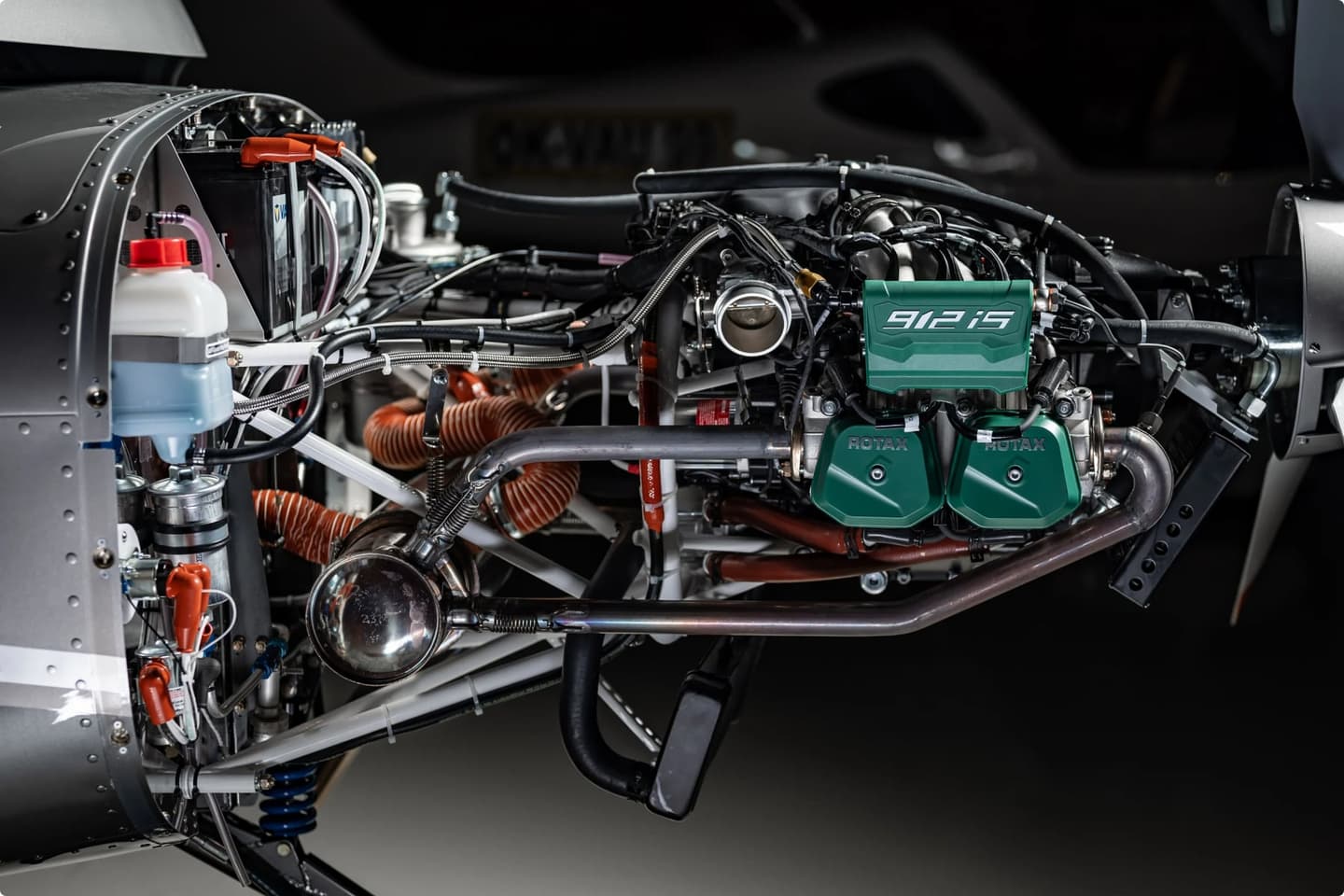

Electronically fuel-injected Rotax 912 iS Sport with FADEC engine management and a 2,000-hour TBO. No carburettor icing, automatic mixture, easier starts and up to 30% lower fuel burn than carbureted engines.
Hydraulic constant-speed · 3-blade · matched to the Rotax 912 iS Sport
A hydraulic three-blade MT-Propeller constant-speed unit. It holds the optimal blade angle across climb and cruise for smooth, predictable handling.
Standard BRS whole-aircraft parachute on a benign-handling, all-metal airframe — the same safety margins as every B23.
Ballistic parachute that lowers the entire aircraft under a canopy in an emergency. Works within a defined minimum altitude and speed envelope.
Benign, forgiving handling with gentle stall characteristics and no sudden wing drop, which gives the pilot time to react. Well suited to training and lower-time pilots.
4-point AmSafe restraint system for both occupants on premium leather seats — better restraint and load distribution in a hard landing or impact.
AT1 active traffic unit that shows surrounding traffic directly on the glass cockpit, independent of ADS-B coverage.
Garmin transponder with ADS-B In and Out. Displays nearby traffic and makes the aircraft visible to ATC and other aircraft. Meets the FAA 2020 ADS-B Out mandate.
406 MHz emergency locator transmitter that signals the aircraft's position to search-and-rescue satellites after a hard landing or crash.
Whelen wing strobes and navigation lights that keep the aircraft visible to other traffic, day and night.
Dedicated backup battery (IBBS) that keeps the glass cockpit powered during an alternator or electrical failure.
Independent standby display that keeps attitude, airspeed and altitude available if the main glass display fails. Garmin GI 275 on B23, G5 on UL/LSA.
All-metal aircraft structure that deforms predictably under load and shows damage on the surface, unlike composite where damage can stay hidden. Fatigue behavior is predictable and well understood.
Aithre cockpit carbon monoxide monitor that warns of CO before it affects the pilot.
B23-912iS · EASA CS-23 CERTIFIED · Rotax 912 iS Sport · 2,000 h TBO · MTOW 750 kg (1,653 lbs)
| Specification | Value |
|---|---|
| Max Power | 73.6 kW 100 HP |
| Cruise Speed | 196 km/h 106 KTAS |
| Stall Speed (clean) | 93 km/h 50 KCAS |
| Max Speed (VH) | 206 km/h 111 KTAS |
| Rate of Climb | 3.6 m/s 702 fpm |
| Service Ceiling | 4,267 m 14,000 ft |
| Range | 1,445 km 780 NM |
| Endurance | 7.2 h 7.2 h |
| Specification | Value |
|---|---|
| Maximum Take-Off Weight | 750 kg 1,653 lbs |
| Empty Weight | 450 kg 992 lbs |
| Useful Load | 300 kg 661 lbs |
| Fuel Capacity | 120 L 31.7 US gal |
| Specification | Value |
|---|---|
| Wingspan | 9.274 m 30' 5" |
| Length | 6.585 m 21' 7" |
| Cabin Width | 130 cm 51.2 in |
All specifications per applicable Type Certificate.
780 NM (1,445 km) range at 75% power — pick a departure point and see the reach.
Location not found — try a city name like "Munich" or "Denver".
780 NM (1,445 km) at 75% power
Still-air range, no reserve, ISA conditions — shown for illustration only, not for flight planning.
Type-certified under EASA CS-23 — the design, testing and documentation examined and approved by the European Union Aviation Safety Agency.
FAA Part 23 certification is in progress.

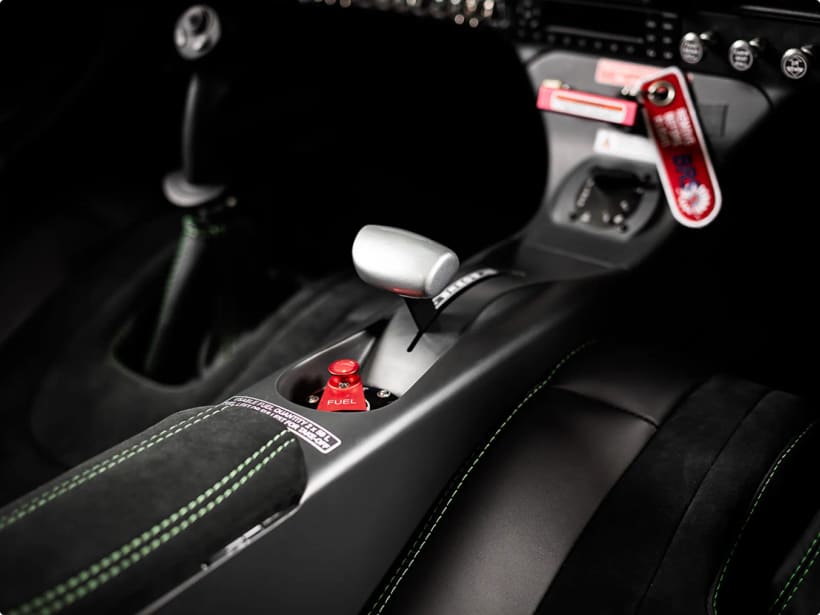

Single Lever Power Control (SLPC) with FADEC combines throttle and propeller in one lever. The rest of the cockpit ships complete, FlySto-compatible.
Centre-stick design with independent left and right sticks. No control yoke obstruction, for a direct and intuitive control feel.
Rudder pedals adjustable through two or three positions to fit pilots of different heights.
USB-A and USB-C charging ports per seat. Power for tablets, ANR headsets and EFB devices on every flight.
Single Lever Power Control (SLPC) with FADEC on the Rotax 912 iS Sport. Throttle and propeller combine into one lever, so engine management stays simple and the propeller is always set right.
Compatible with FlySto, an online platform that turns recorded G3X flight and engine data into a detailed debrief with track replay, approach scoring and performance against book figures. FlySto is a third-party service, free for individual use with paid plans for high-volume and fleet operations.
Garmin GMA 345 audio panel with Bluetooth and 3D audio for clean radio management and traffic heard in spatial position.
The comfort of the most spacious cabin in its class — 130 cm (51.2 in) wide, and comfortable for two even on long cross-country flights.
Cabin heating with a demisting system for comfort and a clear canopy in cold or damp conditions.
Two 20 kg (44 lbs) wing lockers plus 15 kg (33 lbs) behind the seats, 55 kg (121 lbs) total luggage capacity, with useful load to spare.
Direct nose-wheel steering through the rudder pedals, for full control during taxi, takeoff and landing roll.
Hydraulic differential disc brakes on the rudder pedals for independent left and right braking and precise ground control.
Wing-mounted landing light for night operations and daytime conspicuity.
EASA certified exhaust silencer that reduces noise significantly and enables operations at noise-restricted airports where other aircraft must stay on the ground.
Every Bristell is built around its pilot. Tell us how you'll fly yours — and we'll build it.
Explore customisation options
Propellers, towing winch, extended range, bush wheels.
Leather trim, alcantara accents, signature stitching.
Heating, panel lighting, USB, oxygen support.
One colour, two colour or three colour schemes, Italian design, Bristell Signature.
106 KTAS (196 km/h) at 75 % power, FL100. Maximum level speed (VH) is 111 KTAS (206 km/h).
1,445 km (780 NM) at 75 % power on its 120 L (31.7 US gal) tank — about 7.2 hours of endurance.
Yes. EASA CS-23 Certified (05/2025) and CAA UK Certified (12/2025), with Night VFR approval. FAA Part 23 certification is in progress.
2,000 flight hours. The fuel-injected 912 iS Sport delivers 100 HP (73.5 kW) with FADEC and Single Lever Power Control, running on MOGAS or AVGAS.
Yes. The BRS whole-aircraft parachute is standard equipment, alongside a 4-point AmSafe harness.
