BRISTELL B8

BRAND NEW HIGH-WING

Meet BRISTELL B8 – our brand-new high-wing model.

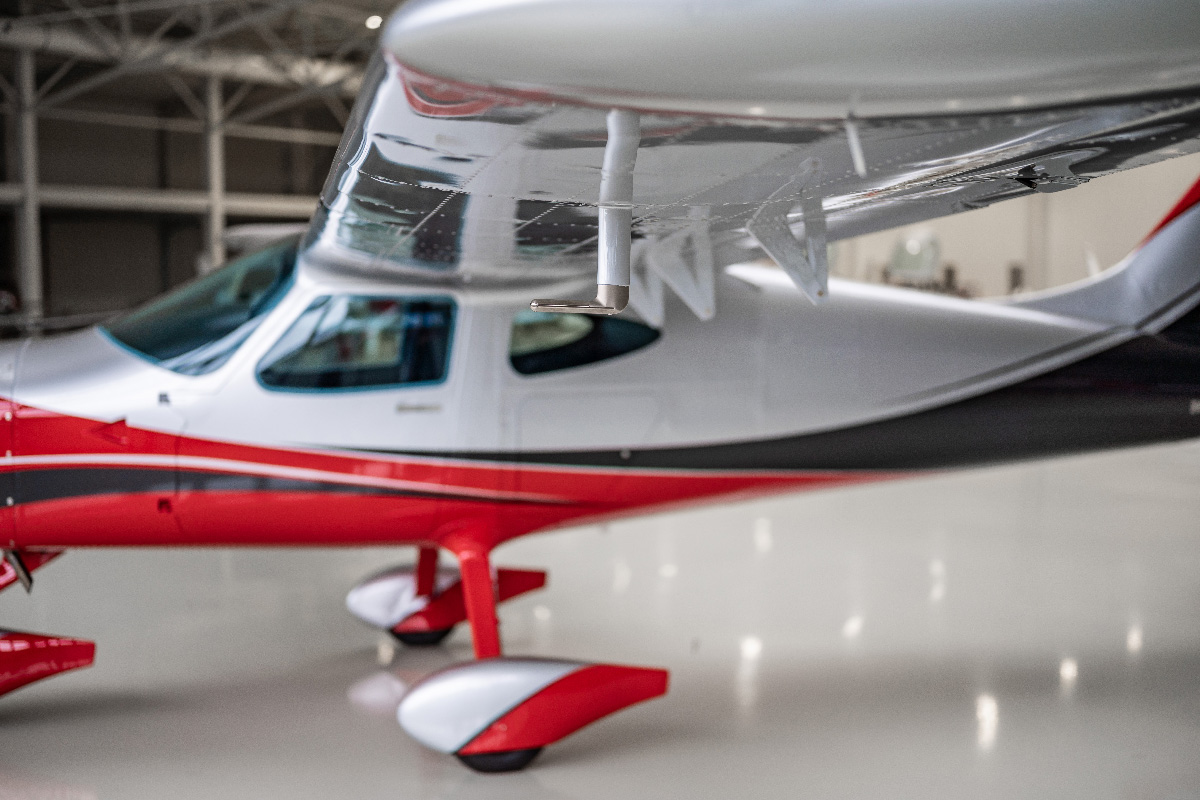

BRISTELL B8 has an all-metal wing without struts plus a steerable nose wheel. The cockpit is 125cm wide, the doors to the cockpit as well as the luggage compartment door are made of composite material.

The basic model will be powered by a Rotax 912 ULS (100 HP). Rotax 912 ULS (100 HP). At a later stage, BRISTELL plans to develop options to fit the other Rotax engines, such as the 914 and the 915is.

“Should someone be interested to book a production slot for the B8, he or she is welcome to do so as the plane has been in production since November 2019,” says Bristell.

The BRISTELL B8 will be certified in the Czech Republic in the UL category with MTOW (Maximum Take Off Weight) of 600 kg.

BRISTELL B8 TECHNICAL DATA

Dimensions

Wing span

9.3 m

Cockpit width

1.25 m

Weight

Maximum take-off weight (MTOW)

600 kg

Empty weight

350 kg

Fuel tanks capacity

150 l

Operational speed

Manoeuvring speed VA

180 km/h

Maximum flap speed VF

145 km/h

VD

322 km/h

Never exceeded speed VNE

290 km/h

Power unit

ROTAX 912 ULS

100 Hp

ROTAX 915 iS

141 Hp

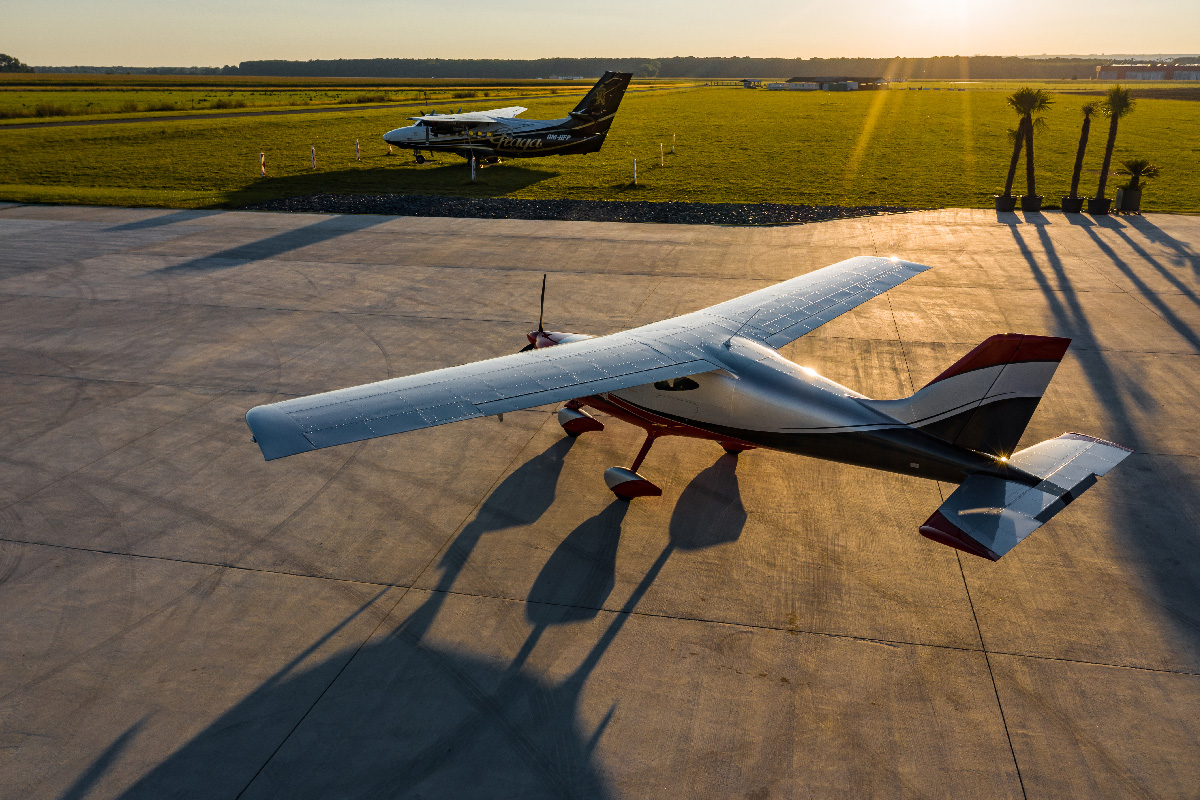

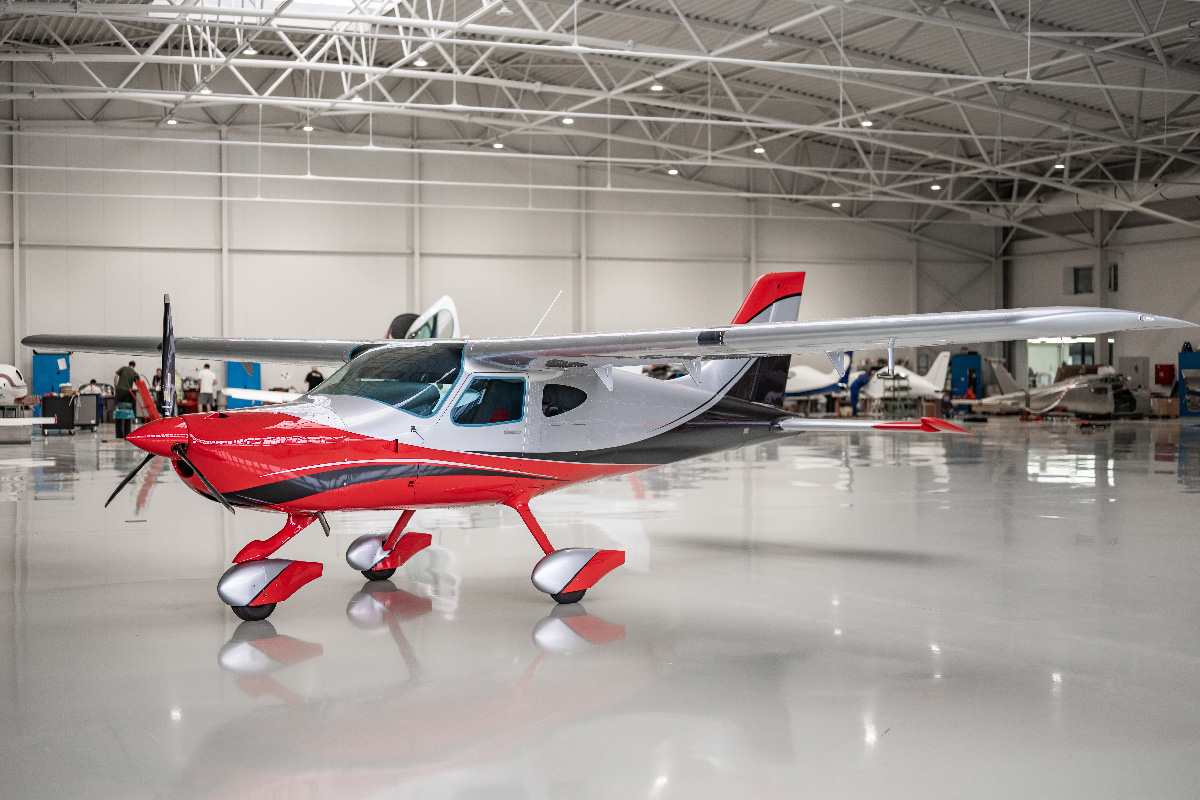

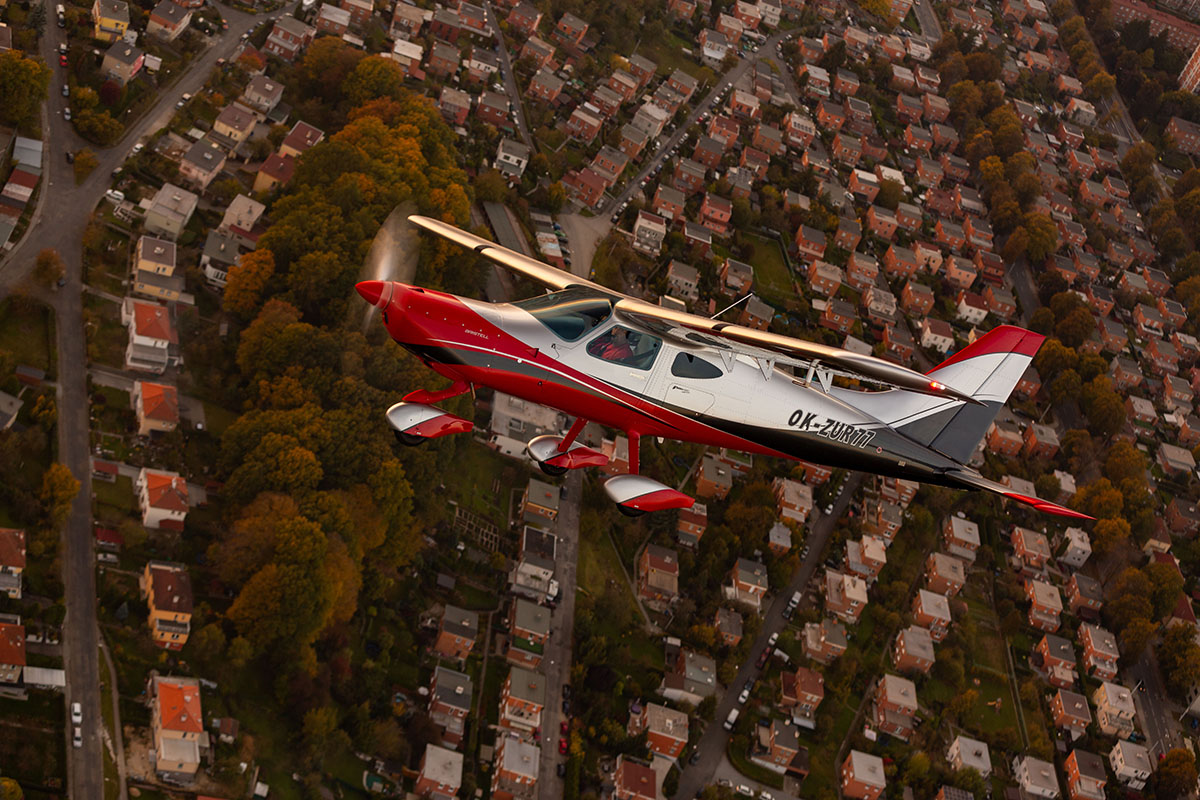

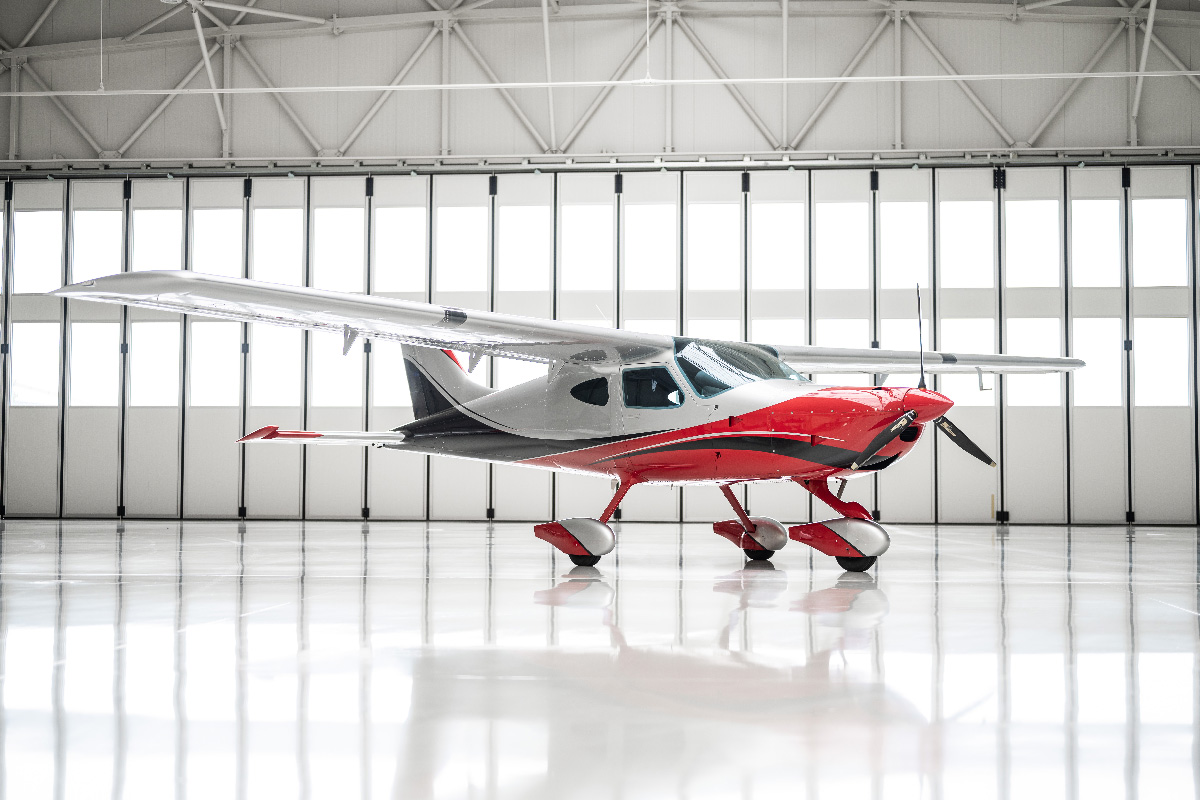

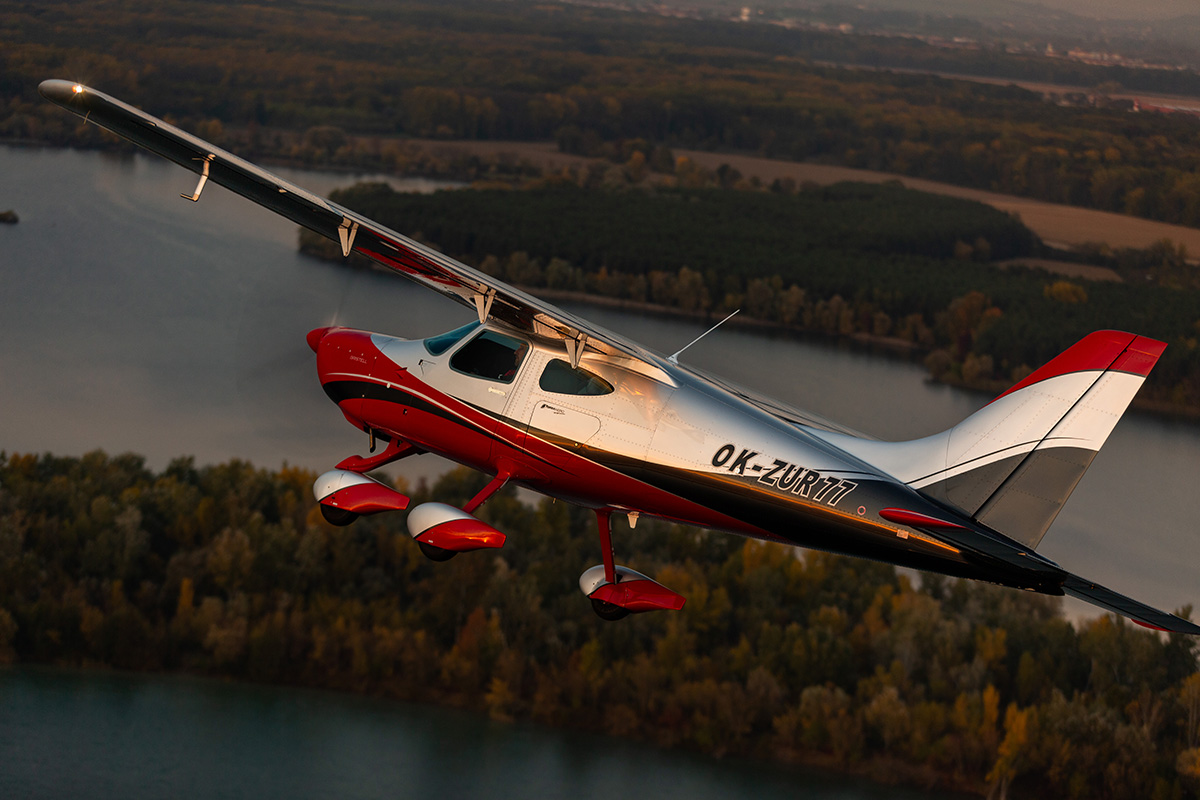

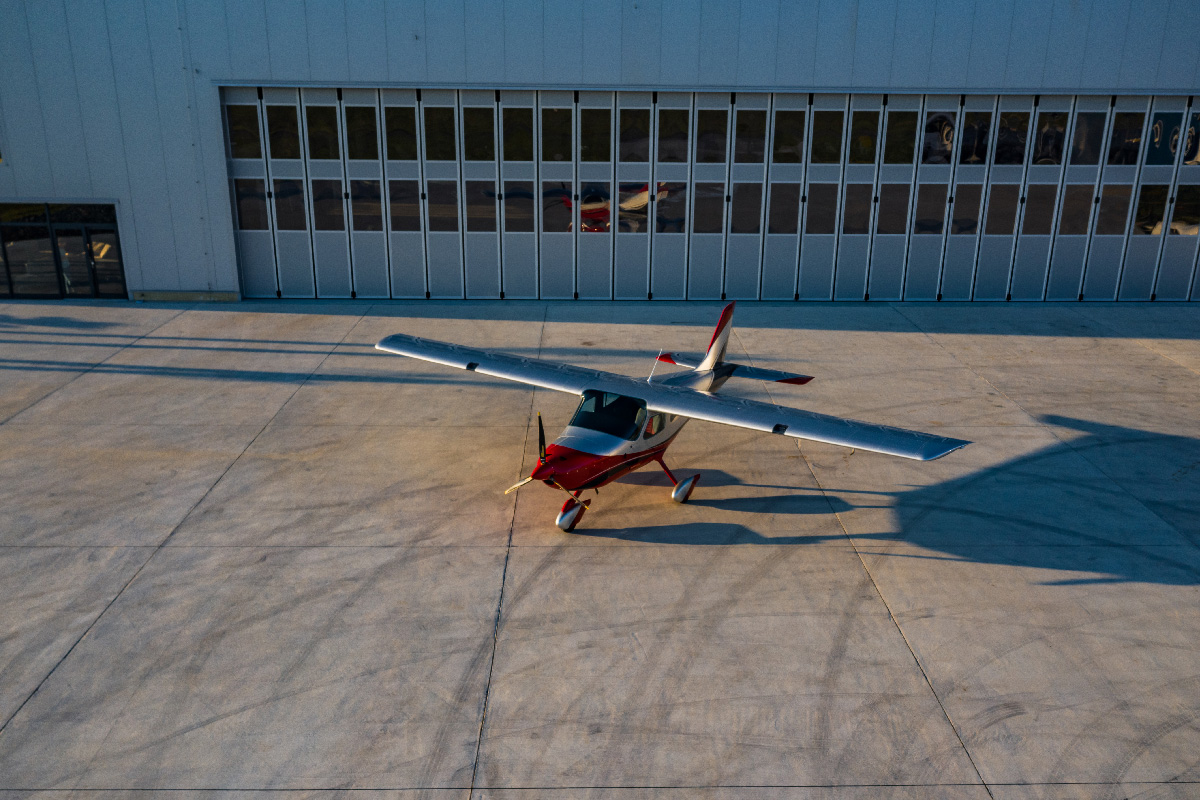

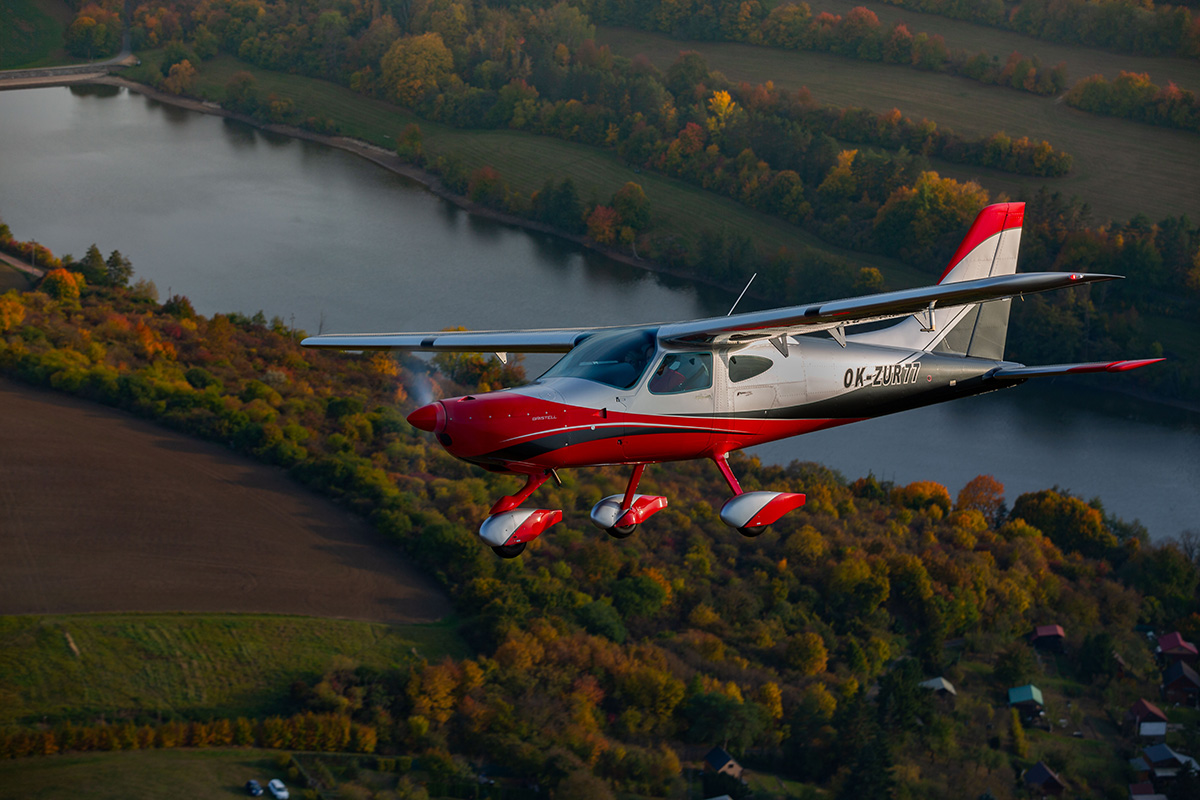

BRISTELL B8 photogallery
